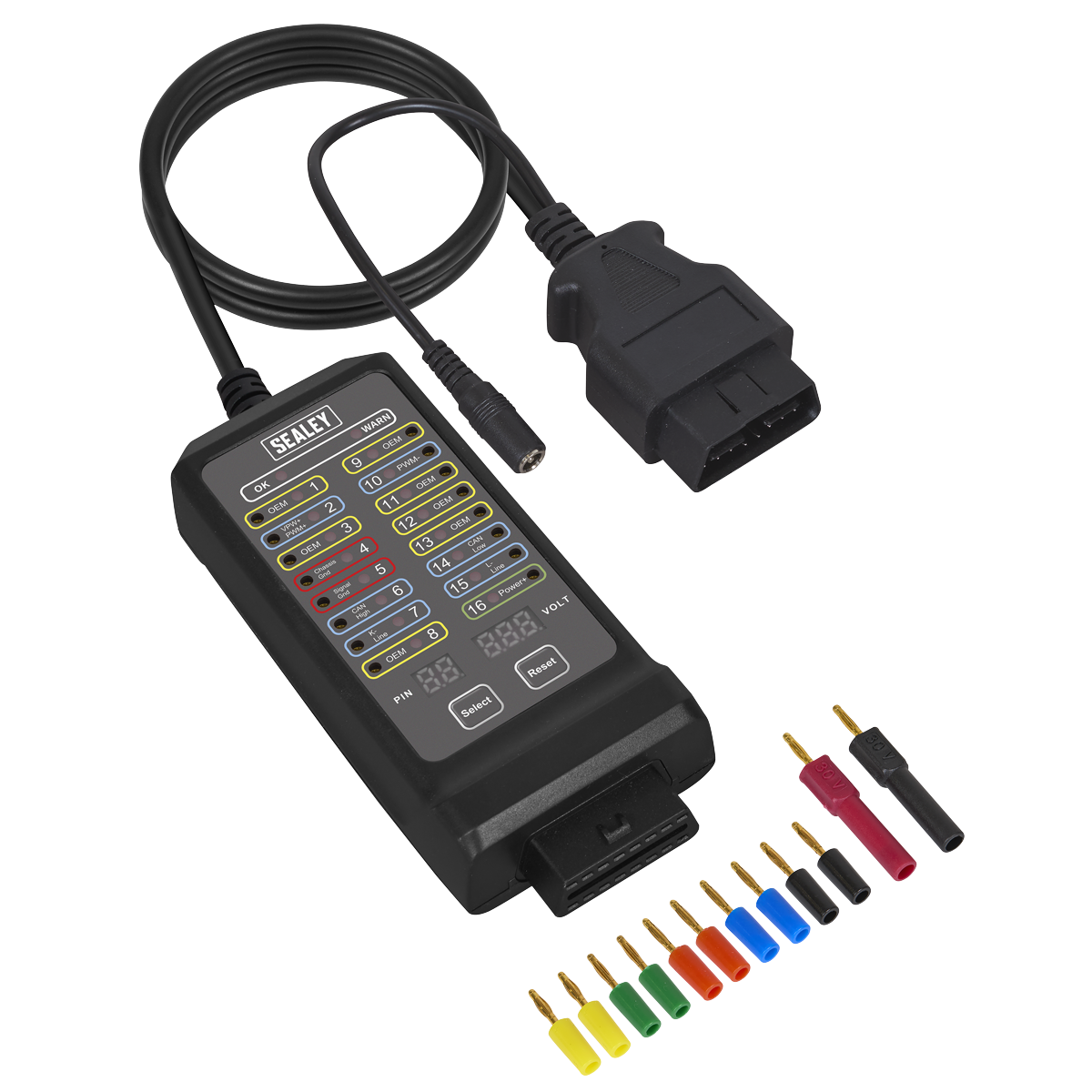

OBD Breakout Box 16-Pin 12V/24V

• TESTS THE ON-BOARD DIAGNOSTOC PORT - For any faults before connecting other diagnostic devices to the DLC. • UNIQUE DESIGN – The breakout box can be connected in series with 16-pin OBDII/EOBDII diagnostic equipment. • CONNECTS TO MULTIMETERS AND OSCILLOSCOPES – To enable further testing. • COMPATIBLE - With 12 and 24V systems. • SELECTABLE PIN VOLTAGE INDICATOR - Shows the real-time voltage of the selected pin. • COMMUNICCATION PROTOCOL INDICATOR - Pin 6 = CAN H, Pin 14 = CAN L, Pin 2 = VPW+, PWM+, Pin 10 = PWM-, Pin 7 = K_LINE and Pin 15 = L_LINE. • OVERLOAD PROTECTION - Protects any connected diagnostic equipment from damage.
